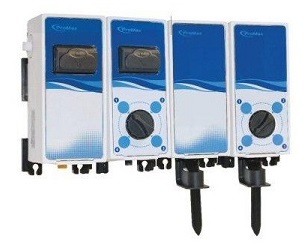

ProMax Dispensers

Pro Max represents the most intuitive and cost effective dispensing system available in the market today. By combining revolutionary technology of patented hydrodynamics and user friendly, image enhancing features, Pro Max provides the perfect solution for all institutional and light industrial chemical dilution applications.



Features

• Available in 1 and 4 product dispensing configurations with both Button and Slide activation options
• Watermark approved back-flow device to avoid chemical contamination of the inlet water
• Flow rate options of 4, 16 and 30 litres/minute
• Working pressure from 1 bar (15psi) to 5 bar (75psi)
• Working temperature up to 70* C
• Inlet connection is ¾” BSP and is compatible with all Australian fittings
• Metering tips are inserted from the outside speeding up installation time
• Solenoid valve type magnet activation tested to provide 10 years of operation
• Industrial designed dial on four product systems with specially formulated elastomers providing unmatched durability and the highest chemical resistance available
• For a 4 product system, each inlet is numbered making it easy to know which metering tip applies to which chemical to be diluted. No more having to open the cover to trace the suction lines
• Ability to customise; Easily personalised facing allows customisation without costly printing minimums and set up charges
• Modular; Individual units easily connect together to form whatever dispensing configuration you require
• Optional Cartridge Filter for troublesome water areas
• Optional tamper proof housing
• Robust and durable PP enclosure

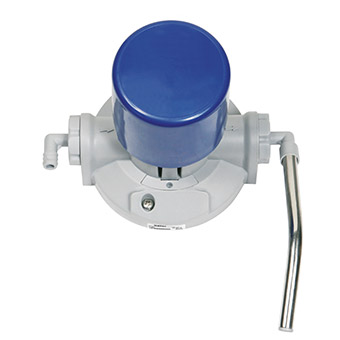

ProDose R

An enhanced version of the original Pro Dose models, the Pro Dose R raises the bar in terms of reliability and durability.



Features

• Universal wall mounting bracket. No drill required when replacing existing pumps.
• Accurate dosing, each push yields the same volume output every time.
• Easy adjustable dosage: 5/10/15/20/25/30 ml per push by moving red pins.
• Pin for lock out time provided as a standard.
• Heavy duty spring on the outside so no contact with chemical.
• Larger diameter inlet and outlet fittings for products over 4000Cps.
• Inlet and outlet valve easily accessible for cleaning and replacing.
• New flexible spout made from EPDM for chemical compatibility and durability.
• Discharge spout easily replaceable if damaged.
• Extended and non-drip spout.
• Various coloured caps available to match the colour coding of your chemicals.
• Double O-ring seals for quick priming and to hold product in place.
• Models available for detergents, solvents and chlorinated type products.
• EPDM Seal: for classic detergents, pH range of 10-14
• Silicone Seal: for chlorine products, pH range of 5-10
• Viton Seal: for solvents, pH range of 0-5
